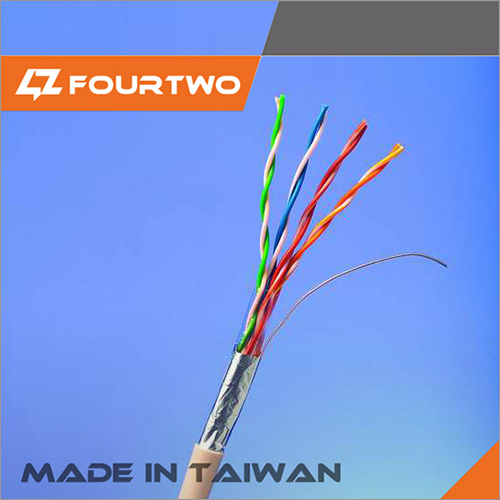

FTP Lan Cable

FTP Lan Cable
FTP Lan Cable
Product Code : CAT 5-5E
Price And Quantity
  • Minimum Order Quantity
  • 30500
  • Unit of Measure
  • Meter/Meters
Product Specifications
  • Conductor Material
  • Bare copper/CCAG/CCA/CCA+C
  • Insulation Material
  • PE
  • Jacket Material
  • PVC
  • Color
  • Customized
Product Description

We are experts in providing a comprehensive range of shielded Ethernet cables including an array of premium quality FTP Lan Cable. This kind of cables come with a foil (F) shield that is carefully wrapped around the exterior of the twisted pair package. Thus, unlike STP cables, these cables are not designed to cover and protect the pairs individually. As these FTP Lan Cable range we offer is competitively priced, these cables can be utilized in facilities that experiences significant but comparatively lesser intense interference in an economical manner. These cables demand the requirement of an adequate ground connection.

Product Description :

  • U/UTP, 24AWG solid bare copper CAT.5e
  • Shield Type: STP,FTP,UTP,SFTP,SSTP
  • Service: OEM/ODM
  •  High performance of transmission
  • High quality of safety property
  • Sweep frequency up to 100 Mhz.
  • Fire Rating: CMR,CMG,CMP,CM,CMX
  •  Number of conductors : 4

Application :

  • Transmission of digital and analogue for data, video and audio applications
  • IEEE 802 3U 100BASE-T and legacy speeds.
  • CDDI / ATM / Token Ring

Applicable Standard :

  • Electrical Transmission
    • ANSI/TIA-568-C2
    • ISO/IEC 11801
    • IEC 61156-5
  • Flame Test
    • UL 1581
  • Material and Construction
    • UL 444
    • CSA 22.2 NO 214

Construction & Dimension :

Conductor

Material

Solid Bare Copper

24 AWG Solid Bare Copper

Insulation

Color code & Diameter

HDPE

Blue & White / Blue Stripe

0.90+0.02 mm

Orange & White /Orange stripe

0.90+0.02 mm

Green & White /Green Stripe

0.90+0.02 mm

Brown & White / Brown stripe

0.90+0.02 mm

Usage & Environmental Condition:

Temperature Range

Storage & Shipping

-20oC to 75oC

Installation

0oC to 60oC

Operation

-20oC to 60oC

Physical & Electrical Characteristics (at 20oC)

Temperature & Voltage Rating

75oC / 300V

Spark test

2.5 KV DC

Cable cold bend

20C for 4 hr

Conductor DC resistance

< 9.38 Ω/100m

Resistance unbalance

< 5%

Dielectric strength

> 5000 MΩ m

Insulation resistance

1.5 KV ac For 2s

Neutral capacitance

> 5.6 nF/100m

Capacitance unbalance pair to ground

> 330 nF/100m

Insulation

Unaged

Tensile Strength

2400 PSI Mm (16.5 MPs)

Elongation

300% Min

Aged

Tensile Strength

Min 75% (100oC x 48 hrs)

Elongation

Min 75% (100oC x 48 hrs)

Jacket

Unaged

Tensile Strength

2000 PSI Min. (13.8 MPs)

Elongation

100 % Min

Aged

Tensile Strength

Min 85% (100oC x 240 hrs)

Elongation

Min 50% (100oC x 240 hrs)

Transmission Performance (at 20oC)

Frequency

IL

NEXT

PS NEXT

ACRF

PS ACRF

RL

Delay Skaw

(MHz)

Max dB/100m

Max dB/100m

Max dB/100m

Max dB/100m

Max dB/100m

Max dB/100m

Max dB/100m

1

2.0

65.3

62.3

63.8

64.8

20.0

45

4

4.0

56.3

53.3

51.7

52.8

23.0

8

5.8

51.8

48.8

45.7

46.7

24.5

10

6.5

50.3

47.3

43.8

44.8

25.0

16

8.2

47.3

44.3

39.7

40.7

25.0

20

9.3

45.8

42.8

37.7

38.8

25.0

25

10.4

44.3

41.3

35.8

36.8

24.3

31.25

11.7

42.9

39.9

33.9

34.9

23.6

62.5

17.0

38.4

35.4

27.8

28.9

21.5

100

22.0

35.3

32.3

23.8

24.8

20.1

Trade Information
  • FOB Port
  • Taichung port, TAIWAN
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Days after Acceptance (DA)
  • Supply Ability
  • 200000 Roll/Rolls Per Month
  • Delivery Time
  • Be shipped in 30days after payment Days
  • Packaging Details
  • 305 meter/1000ft per roll Carton box.
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, South America, North America, Asia
  • Certifications
  • Certification: ISO 9001:2015, ISO 14001:2004 Safety Approval: UL, CUL, VDE, ENEC, BS, SAA, BSMI, PSE, KC, CCC.
